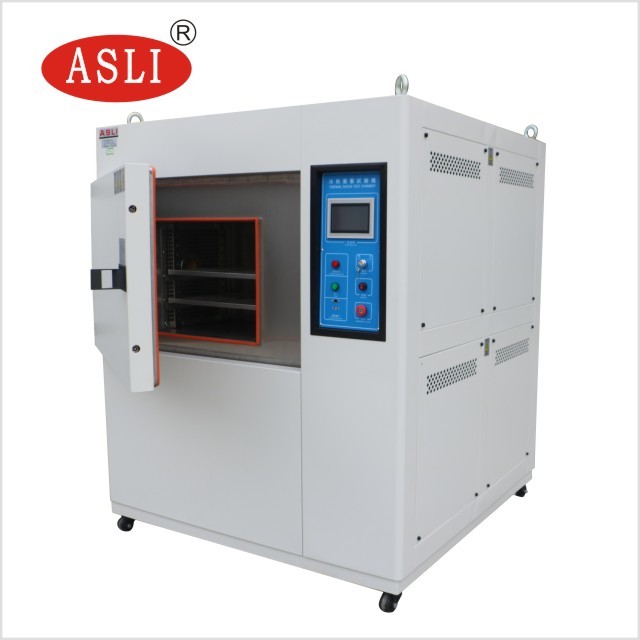

ISO16750 Standard Battery High Temperature Thermal Shock Testing Machine
รายละเอียดสินค้า
Product Description
Competitive price & good quality
Long service lifetime
High precise & reliability performance
Direct manufacturers with more than 28 years experiences
High accurate temperature
Lithium Battery Thermal Shock Testing Machine is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.
Specification
Model
TS-42(A~C)
TS-80(A~C)
TS-150(A~C)
TS-252(A~C)
TS-450(A~C)
Internal Dimension
WxHxD ( mm)
400x350x350
500x400x400
600x500x500
700x600x600
800x750x750
External Dimension
WxHxD (mm)
1400x1800x1400
1550x1950 x1550
1600x2000 x1700
1700x2100 x1750
1800x2200 x1900
Temperature Range of Testing zone
Type A:-40 ºC~+150ºC
( 200ºC is Optional)
Type B:-55ºC ~+150ºC
( 200ºC is Optional )
Type C:-65ºC ~+150ºC
( 200ºC is Optional)
High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional);
Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC
Exposure Time of High /
Low Temperature
Exposure Time of High Temperature: +60ºC ~ +150ºC (200ºC is Optional) 30Mins
Exposure Time of Low Temperature : -10ºC~Type A:-40ºC / Type B -55ºC / Type C -65ºC 30Mins
Temperature of
Heat-Storing Slot /
Heating Time
RT~200ºC/About 45mins
Temperature of
Cool-storing Slot /
Cooling Time
RT~-75ºC/ About 100mins
Temperature Recovery Time /
Conversion Time
≤5min/≤5sec
Control Accuracy /
Distribution Uniformity
±0.5ºC/±2ºC
Internal and External Material
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint
coated.
Insulation Material
High temperature resistant , high density , formate chlorine , ethyl acetum foam insulation materials
Mechanics
P.I.D+S.S.R+ Micro-computer balanced temperature control system
Thermal Shock Test chamber features:
1.It is divided into three zones: high temperature zone, low temperature zone, and testing zone. The test sample is in static
mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.

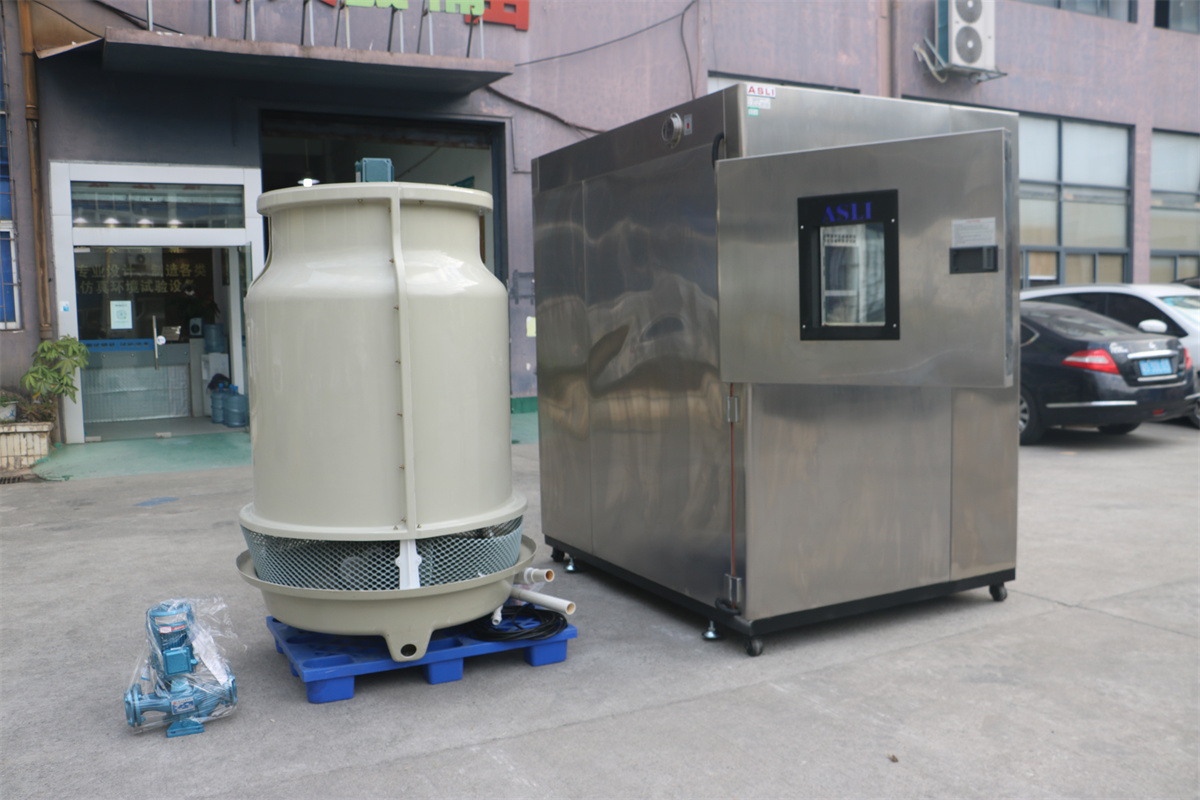

6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. RS-232 and RS-485 communication.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Thermal Shock Test Chamber is our star products , and we had obtained the CE certification for this machine .
