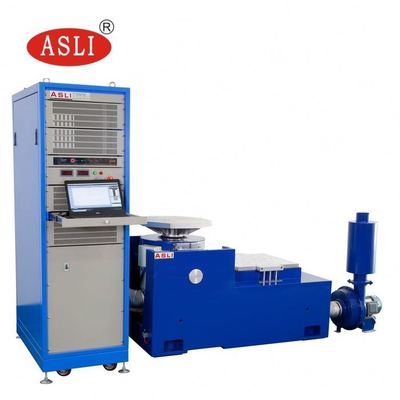

High Frequency Vibration Test Stand
The High Frequency Vibration Test Stand is designed for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It serves aerospace, communications, electronics, electrical, and home appliance industries. This test platform complies with various international specifications including IEC, MIL-STD, JIS, and ASTM standards.
Specifications
| Model |
ES-10 |
ES-20 |
ES-30 |
ES-40 |
| Rated Sine Force (N) |
10000 |
20000 |
30000 |
40000 |
| Frequency Range (Hz) |
3-3000 |
3-3000 |
3-2800 |
3-2800 |
| Rated Acceleration (m/s²) |
1000 |
1000 |
1000 |
1000 |
| Rated Speed (m/s) |
1.8 |
1.8 |
1.8 |
1.8 |
| Rated displacement (p-p) mm |
70 |
80 |
11100 |
100 |
| Max. Loading (Kg) |
270 |
300 |
450 |
500 |
| Moving coil (Kg) |
14 |
30 |
40 |
50 |
| Dimension of Moving coil (mm) |
Φ240 |
Φ320 |
Φ450 |
Φ450 |
Product Features

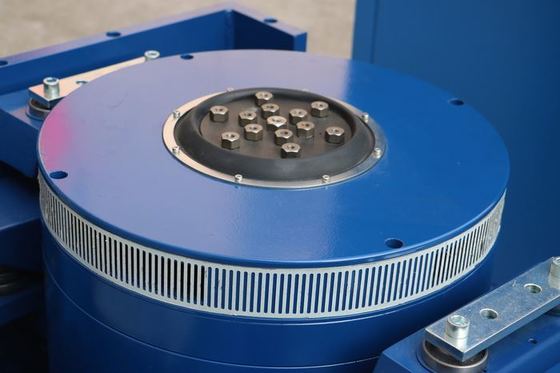

- Flexible suspension system with straight line guide for strong bearing capacity, excellent guidance performance, and high stability
- Central load airbag with large static stiffness and small dynamic stiffness for superior bearing capacity and dynamic performance
- Rapid self-examination diagnosis and chain protection for high safety and reliability
- Air bag isolating and damping device eliminates need for special foundation while reducing vibration transmission
- Horizontal and vertical expansion platforms available for different applications
- Compatible with various vibration controllers for simple operation

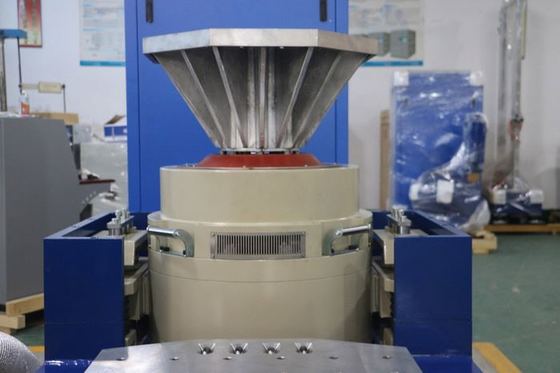

Horizontal Stand Features
- Small loading bench achieves higher acceleration and working frequency while improving loading capacity
- Integral horizontal bench and vibration bench design for perfect structure and easy installation
- Static pressure V-shape track with slope-resistant and bias-loading resistant capacity
- Built-in oil pump for good structure and easy operation

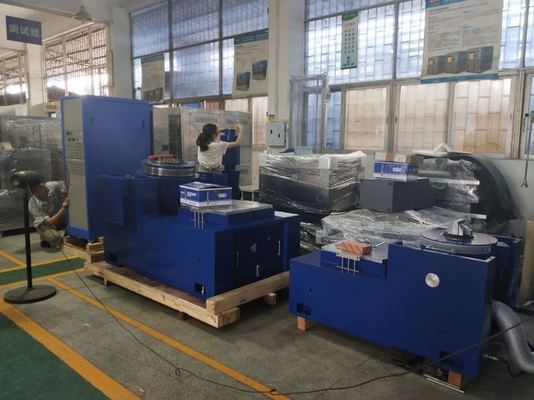

Packing & Delivery
Professional, environmentally friendly, and efficient packaging services ensure the safety of your goods during transportation.
Company Profile
With 28 years of experience, we are a specialized manufacturer of simulation environmental testing equipment and mechanical vibration/shock testing machines. Our horizontal and vertical vibration 3-axis high frequency vibration testers are star products, all CE certified.
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, with 10mm foam between machine and case, and standard export plywood case exterior.
Q2. What is your terms of payment?
A: 50% T/T deposit, with remaining 50% before delivery. We provide product and package photos before final payment.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP options available.
Q4. How about your delivery time?
A: Typically 30-60 days after receiving advance payment, depending on specific items and order quantity.
For more information about our High Frequency Vibration Test Stand, please contact us.
