Laboratory Air Cooling Electrodynamics Shaker Vibrating Table
Our Laboratory Air Cooling Electrodynamics Shaker Vibrating Table incorporates advanced technologies including double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings with linear guidance, and trunnion isolation. This high-performance equipment performs sinusoidal vibration tests across X, Y, and Z axes, broadband random vibration tests, and completes classical pulse tests (half-sine, trapezoidal, sawtooth wave) with shock response spectrum testing capabilities.
Key Applications
- National defense and weapons systems
- Aviation and aerospace engineering
- Communications equipment testing
- Electronics and electrical components
- Home appliance durability testing
Technical Specifications
| Model |
ES-6 |
ES-6a |
ES-10 |
ES-20 |
| Rated Sine Force (N) |
6000 |
6000 |
10000 |
20000 |
| Frequency Range (Hz) |
3-3500 |
3-3500 |
3-3000 |
3-3000 |
| Rated Acceleration (m/s²) |
1000 |
1000 |
1000 |
1000 |
| Rated Speed (m/s) |
1.6 |
1.6 |
1.8 |
1.8 |
| Rated displacement (p-p)mm |
25 |
51 |
51 |
51 |
| Max. Loading (Kg) |
180 |
250 |
270 |
300 |
| Moving coil (Kg) |
6.5 |
12 |
14 |
30 |
| Dimension of Moving coil (mm) |
Φ230 |
Φ230 |
Φ240 |
Φ320 |
| Vibration Direction |
Vertical, horizontal, vertical+horizontal vibration |
Vertical Expander Features
Our VT vertical extended-bench with specified clamps features precision calculations and elaborate design to ensure optimal performance. The perfect structure combines high-quality materials with superior workmanship.
Horizontal Expander Features
- Small loading bench enables higher acceleration and working frequency
- Improves loading capacity and overall machine performance
- Integral type design with horizontal bench and vibration bench
- Perfect structure for easy installation and adjustment
- Static pressure track with V-shape design
- Slope-resistant and bias-loading resistant capabilities
- Built-in oil pump with excellent structure and easy operation

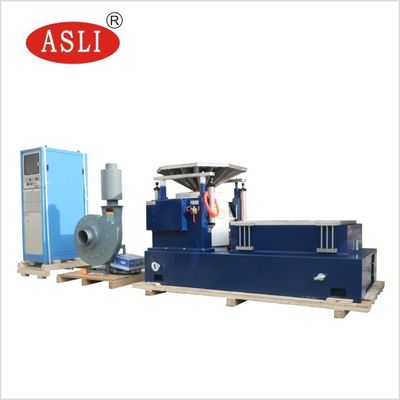

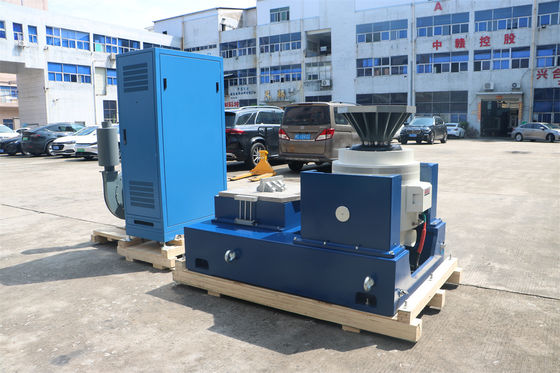

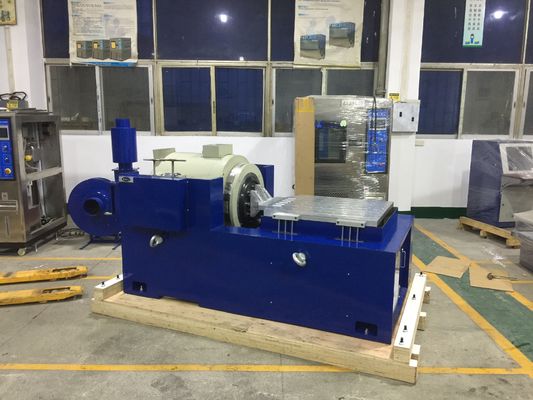

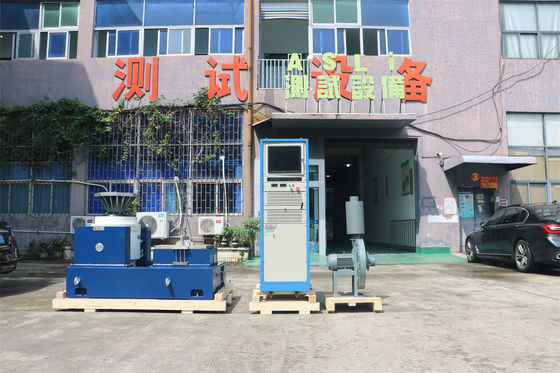

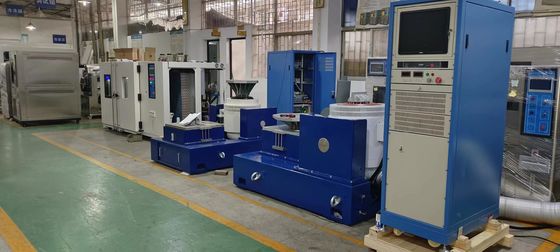

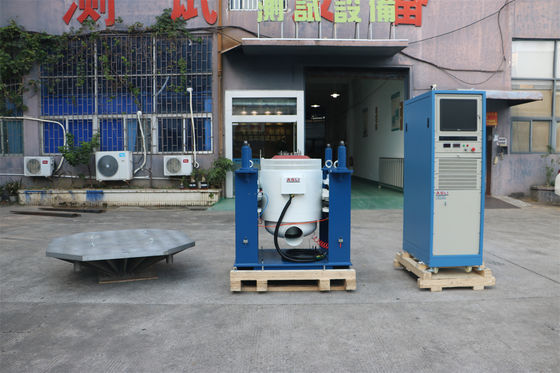

Product Gallery
Packing & Delivery
We provide professional, environmentally friendly packaging with 10mm foam protection between machine and case, all contained within standard export plywood cases to ensure maximum safety during transportation.
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DAP, DDU, DDP
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
For more information about our Laboratory Air Cooling Electrodynamics Shaker Vibrating Table, please contact our technical sales team.
